Products
Aluminium Conductor Galvanized Steel Reinforced (ACSR)

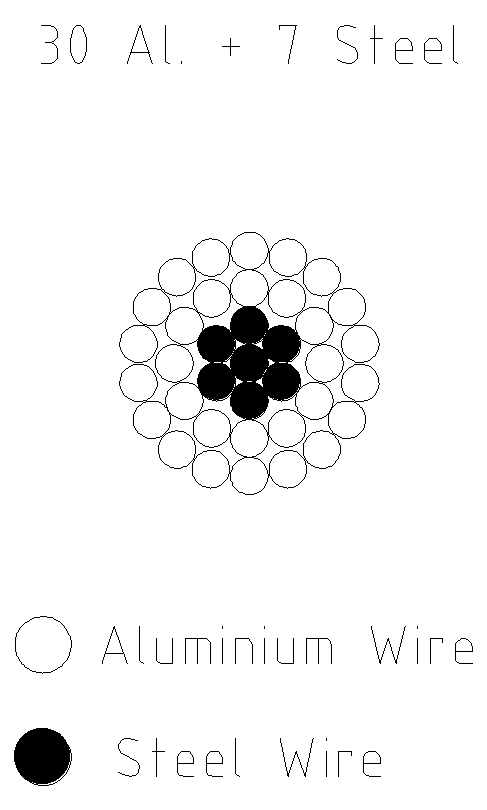

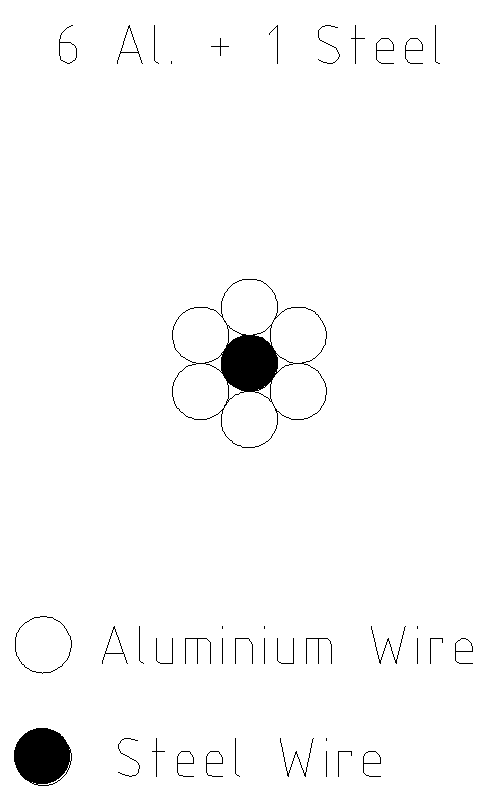

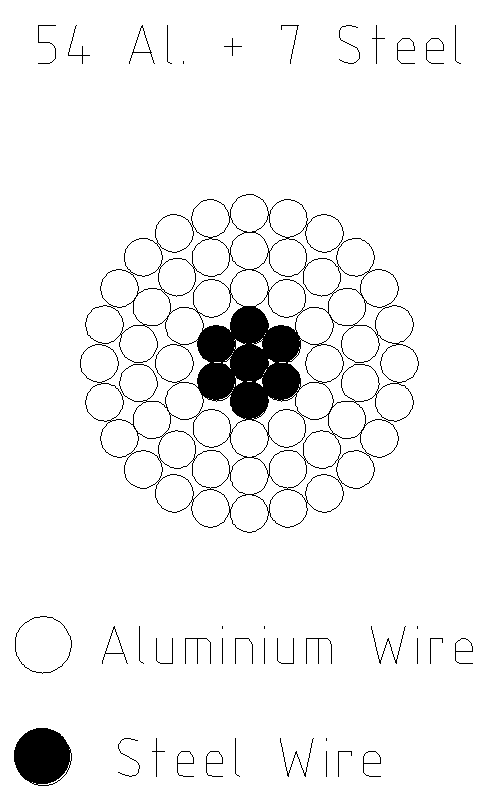

Configuration cross-section
| Code | Nominal Aluminium Area (mm²) | Stranding and Wire Diameter Aluminium (mm) | Stranding and Wire Diameter Steel (mm) | Sectional Area of Aluminium (mm²) | Total Sectional Area (mm²) | Approx Diameter (mm) | Approx Mass (kg/km) | Calculated Maximum Resistance at 20℃ (Ω/km) | Approx Calculated Breaking Load (kN) |
|---|---|---|---|---|---|---|---|---|---|
| Squirrel | 20 | 6/2.11 | 1/2.11 | 20.98 | 24.48 | 6.33 | 85 | 1.394 | 7.61 |
| Weasel | 30 | 6/2.59 | 1/2.59 | 31.61 | 36.88 | 7.77 | 128 | 0.9289 | 11.12 |
| Rabbit | 50 | 6/3.35 | 1/3.35 | 52.88 | 61.70 | 10.05 | 214 | 0.5524 | 18.25 |
| Raccoon | 80 | 6/4.09 | 1/4.09 | 78.83 | 91.97 | 12.27 | 319 | 0.3712 | 26.91 |
| Dog | 100 | 6/4.72 | 7/1.57 | 105.00 | 118.50 | 14.15 | 393 | 0.2792 | 32.41 |
| Wolf | 150 | 30/2.59 | 7/2.59 | 158.10 | 194.90 | 18.13 | 726 | 0.1871 | 67.34 |
| Panther | 200 | 30/3.00 | 7/3.00 | 212.10 | 261.50 | 21.00 | 974 | 0.1390 | 89.67 |
| Kundah | 400 | 42/3.50 | 7/1.96 | 404.10 | 425.20 | 26.88 | 1281 | 0.07311 | 88.79 |
| Zebra | 420 | 54/3.18 | 7/3.18 | 428.90 | 484.50 | 28.62 | 1621 | 0.06868 | 130.32 |
| Moose | 520 | 54/3.53 | 7/3.53 | 528.50 | 597.00 | 31.77 | 1998 | 0.05595 | 159.60 |
| Morkulla | 560 | 42/4.13 | 7/2.30 | 562.7 | 591.70 | 31.68 | 1787 | 0.05231 | 120.16 |
All Aluminium Conductor (AAC)
| Code | Nominal Aluminium Area (mm²) | Stranding and Wire Diameter (mm) | Approx overall diameter (mm) | Approx Mass (kg/km) | Calculated Maximum Resistance at 20℃ (Ω/km) | Approx Calculated Breaking Load (kN) |
|---|---|---|---|---|---|---|
| Gnat | 25 | 7/2.21 | 6.63 | 74 | 1.093 | 4.52 |
| Ant | 50 | 7/3.10 | 9.30 | 145 | 0.556 | 8.25 |
| Wasp | 100 | 7/4.39 | 13.17 | 290 | 0.277 | 15.96 |
| Special | 150 | 19/3.18 | 15.90 | 415 | 0.1942 | 23.28 |
| Spider | 240 | 19/3.99 | 19.95 | 654 | 0.1235 | 35.74 |
| Butterfly | 300 | 19/4.65 | 23.25 | 888 | 0.09107 | 48.74 |
All Aluminium Alloy Conductor (AAAC)
| Actual Area (mm²) | Stranding and Wire diameter (mm) | Approx Overall Diameter (mm) | Approx Mass (kg/km) | Calculated Maximum Resistance at 20℃ (Ω/km) | Approx Calculated Breaking Load (kN) |
|---|---|---|---|---|---|
| 22 | 7/2.00 | 6.00 | 60.16 | 1.5410 | 6.45 |
| 34 | 7/2.50 | 7.50 | 94.00 | 0.99 | 10.11 |
| 55 | 7/3.15 | 9.45 | 149.20 | 0.6210 | 16.03 |
| 80 | 7/3.81 | 11.43 | 218.26 | 0.4250 | 23.41 |
| 100 | 7/4.26 | 12.78 | 272.86 | 0.3390 | 29.26 |
| 125 | 19/2.89 | 14.45 | 342.51 | 0.2735 | 36.64 |
| 148 | 19/3.15 | 15.75 | 406.91 | 0.2298 | 43.50 |
| 173 | 19/3.40 | 17.00 | 474.02 | 0.1969 | 50.54 |
| 200 | 19/3.66 | 18.30 | 549.40 | 0.1710 | 58.66 |
| 232 | 19/3.94 | 19.70 | 636.67 | 0.1471 | 68.05 |
| 288 | 37/3.15 | 22.05 | 794.05 | 0.1182 | 84.71 |
| 346 | 37/3.45 | 24.15 | 952.56 | 0.0984 | 101.58 |
| 400 | 7/3.71 | 25.97 | 1101.63 | 0.0855 | 117.40 |
| 465 | 37/4.00 | 28.00 | 1280.50 | 0.0734 | 136.38 |
| 525 | 61/3.31 | 29.79 | 1448.39 | 0.0651 | 146.03 |
| 570 | 61/3.45 | 31.05 | 1573.71 | 0.0598 | 158.66 |
| 604 | 61/3.55 | 31.95 | 1666.00 | 0.0568 | 167.99 |
| 642 | 61/3.66 | 32.94 | 1771.36 | 0.0534 | 178.43 |
| 695 | 61/3.81 | 34.29 | 1919.13 | 0.0432 | 193.25 |
| 767 | 61/4.00 | 36.00 | 2115.54 | 0.0446 | 213.01 |
Aluminium Wire
Bare Aluminium Wire of diameter as per customer specification.
About Us
Our firm was eastblished in 1973 by Mr. GC Jain, engineering graduate in metallurgy from Government College of Engineering Raipur.
We started commercial production in 1976 with AAC conductor. ACSR conductor was added later in the year. We got BIS standard marking licence in the year 1978. Subsequently production of AAAC conductor was started in 1999.
We currently manufacture and market ACSR, AAC & AAAC conductors and Aluminium Wire under our brand name ‘ALCOR’.
Our manufacturing plant is located at Rajnandgaon district, Chhattisgarh. Our location is in close proximity to raw material suppliers and centrally located in the country.
Quality & Certification
We are enrooted to our guiding principle Manufacturing quality products to customer satisfaction. Strict control is exercised over procurement (incoming raw material testing), in process testing, packaging and other ancillary process. To facilitate confirmity to standards we have in house quality control and testing lab which is fully equipped with regular calibration of instruments.
We have Bureau of Indian Standards (BIS) standard marking licence for IS:398 Part 2 (ACSR) since 1978. Conductor manufactured by us has been tested by independent agencies and at independent labs like CMPDIL, RITES, TAG Corporation, QMTL CSIDC, QMTL MPLUNL, NSIC TSC, CSPDCL Testing Lab etc.
Clients
Significant volume of our business comes through government procurement contracts.
We aim to cater cater to orders of all sizes & volume.
Our clients include various EPC contractors, end users and various government & private power utilities and PSUs. Some of our clients are Chhattisgarh State Electricity board (CSEB), Chhattisgarh State Power Distributon Company Ltd (CSPDCL), Chhattisgarh State Power Transmission Company Ltd (CSPTCL), Madhya Pradesh Electricity Board (MPEB), Punjab Stated Electrivity Board (PSEB), Coal India Ltd (CIL) - South Eastern Coalfields Ltd (SECL), Northern Coalfields Ltd (NCL), Indian Railways - East Coast Railway (ECoR), West Central Railway (WCR), The Singareni Collieries Company Ltd (SCCL) (Govt. of Telangana Company).
Contact
- Address:
- Office & Works:
- Aluminium Company of Rajnandgaon
4 Industrial Estate
Rajnandgaon, CG - 491441
- For Sales and other queries contact us at:
- Phone: 07744-464110
email: mail@alcor.in
